rGuiStyler

A simple and easy-to-use raygui styles editor.

Useful for tools style customization. The best tool companion for rGuiLayout and rGuiIcons.

rGuiStyler can be used for free as a WebAssembly online tool and it can also be downloaded as a standalone tool for WindowsLinux and macOS with some extra features.

WARNING: This tool targets raygui 4.0

rGuiStyler Features

  • Global and control specific styles edition
  • Style preview in real time with individual test controls
  • Style templates available to start customizing new styles
  • Selectable controls state: NORMAL, FOCUSED, PRESSED, DISABLED
  • Save and load as binary style file .rgs (font embedded!)
  • Export style as an embeddable code file (.h) (font embedded!)
  • Export style as a .png controls table image for showcase
  • Embed style as custom rGSf png chunk (rgs file data)
  • Import, configure and preview style fonts (.ttf/.otf)
  • Select required codepoints for imported font (Unicode)
  • Color palette for quick color save/selection
  • 12 custom style examples included

rGuiStyler Standalone Additional Features

  • Command-line support for .rgs/.h/.png batch conversion
  • Command-line support for .rgs plain text file export
  • Completely portable (single-file, no-dependencies)

rGuiStyler Usage

The tool is quite intuitive, the expected steps to follow are:

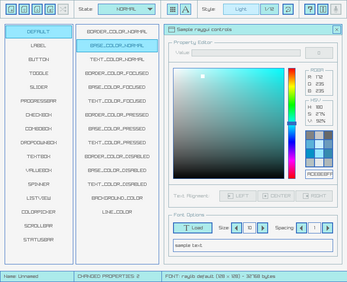

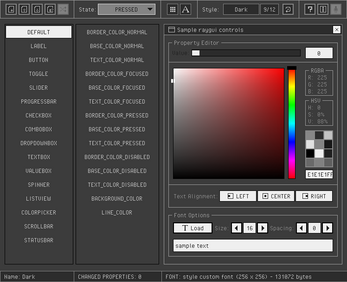

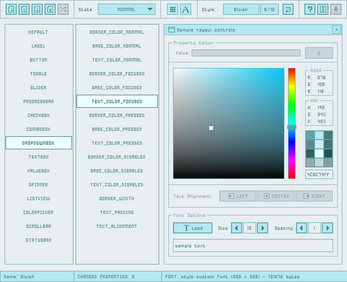

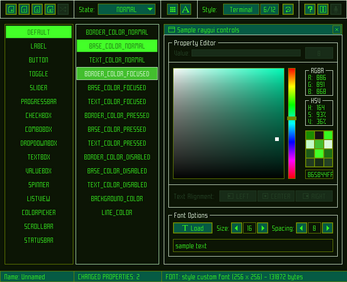

  1. Choose the control to edit from first ListView (DEFAULT referes to global style for all controls)
  2. Choose the property to edit from second ListView
  3. Select a value for that property (color, number...)

NOTE: Changes are previewed in real time in the same tool!

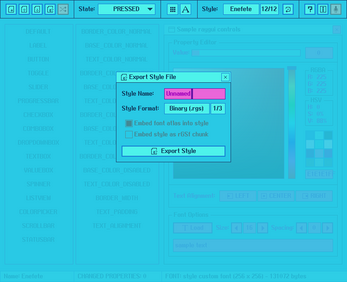

Once the desired style has been created, press the Export Style button to save it as a .rgsbinary style file. Style can also be exported as an embeddable .h code file or a .png controls table image (intended for preview and style showcase)

rGuiStyler Standalone comes with command-line support for batch conversion. For usage help:

rguistyler.exe --help

rGuiStyler License

rGuiStyler source code is distributed as open source, licensed under an unmodified zlib/libpng license.

rGuiStyler binaries are completely free for anyone willing to compile them directly from source.

rGuiStyler Standalone desktop tool is distributed as freeware.

In any case, consider some donation to help the author keep working on software for games development.

Copyright (c) 2017-2022 raylib technologies (@raylibtech) / Ramon Santamaria (@raysan5)

StatusReleased
CategoryTool
PlatformsWindows, macOS, Linux, HTML5
Rating
Rated 4.8 out of 5 stars
(4 total ratings)
Authorraylib technologies
Made withraylib
Tagsimgui, raygui, raylib, style, tool
Average sessionAbout a half-hour
LanguagesEnglish
InputsKeyboard, Mouse
LinksHomepage, Twitter, Source code, Steam, LinkedIn

Download

Download NowName your own price

Click download now to get access to the following files:

rGuiStyler v5.0 Windows (x64) 462 kB
rGuiStyler v5.0 Linux (x64) 449 kB
rGuiStyler v5.0 macOS (x64 + arm64) 845 kB
